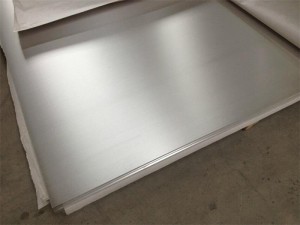

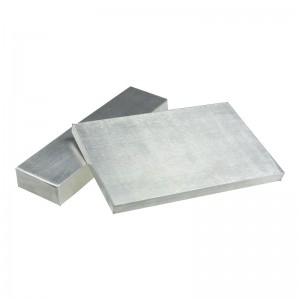

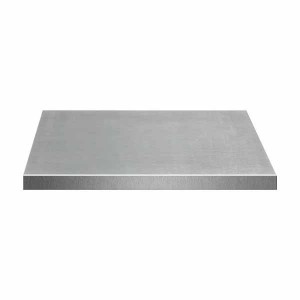

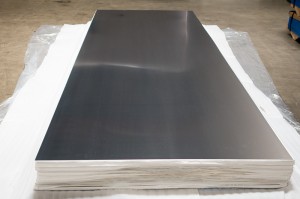

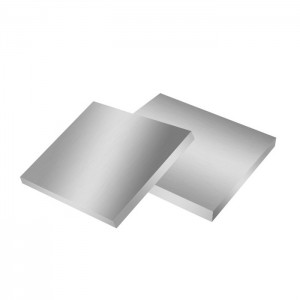

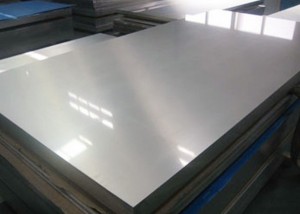

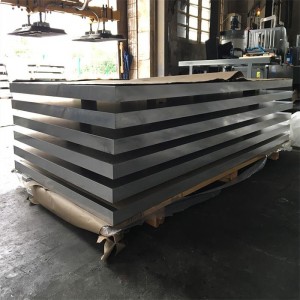

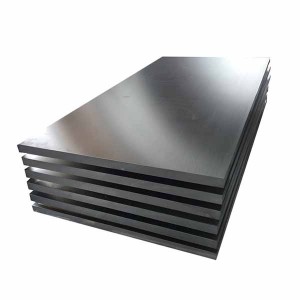

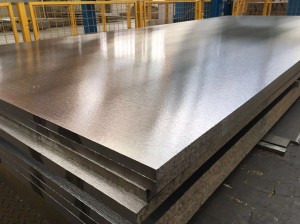

5754 Aluminium Alloy Sheet with High Corrosion Resistant
Aluminum 5754 is an aluminum alloy with magnesium as the primary alloying element, supplemented with small chromium and/or manganese additions. It has good formability when in the fully soft, annealed temper and can be work-hardened to fairy high strength levels. It is slightly stronger, but less ductile, than 5052 alloy. It is used in a multitude of engineering and automotive applications.
5754 aluminum shows great drawing characteristics and maintains high strength. It can be easily welded and anodized for great surface finishing. Because it is easy to form and process, this grade works well for car doors, paneling, flooring, and other parts.
Aluminum 5754 is used in:
- Treadplate
- Shipbuilding
- Vehicle bodies
- Rivets
- Fishing industry equipment
- Food processing
- Welded chemical and nuclear structures
|
Chemical Composition WT(%) |
|||||||||
|
Silicon |
Iron |
Copper |
Magnesium |
Manganese |
Chromium |
Zinc |
Titanium |
Others |
Aluminum |
|
0.4 |
0.4 |
0.1 |
2.6~3.6 |
0.5 |
0.3 |
0.2 |
0.15 |
0.15 |
Balance |
|
Typical Mechanical Properties |
||||
|
Temper |
Thickness (mm) |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
|
O/H111 |
＞0.20~0.50 |
129~240 |
≥80 |
≥12 |
|
＞0.50~1.50 |
≥14 |
|||
|
＞1.50~3.00 |
≥16 |
|||
|
＞3.00~6.00 |
≥18 |
|||
|
＞6.00~12.50 |
≥18 |
|||
|
＞12.50~100.00 |
≥17 |
|||
Applications
Boat

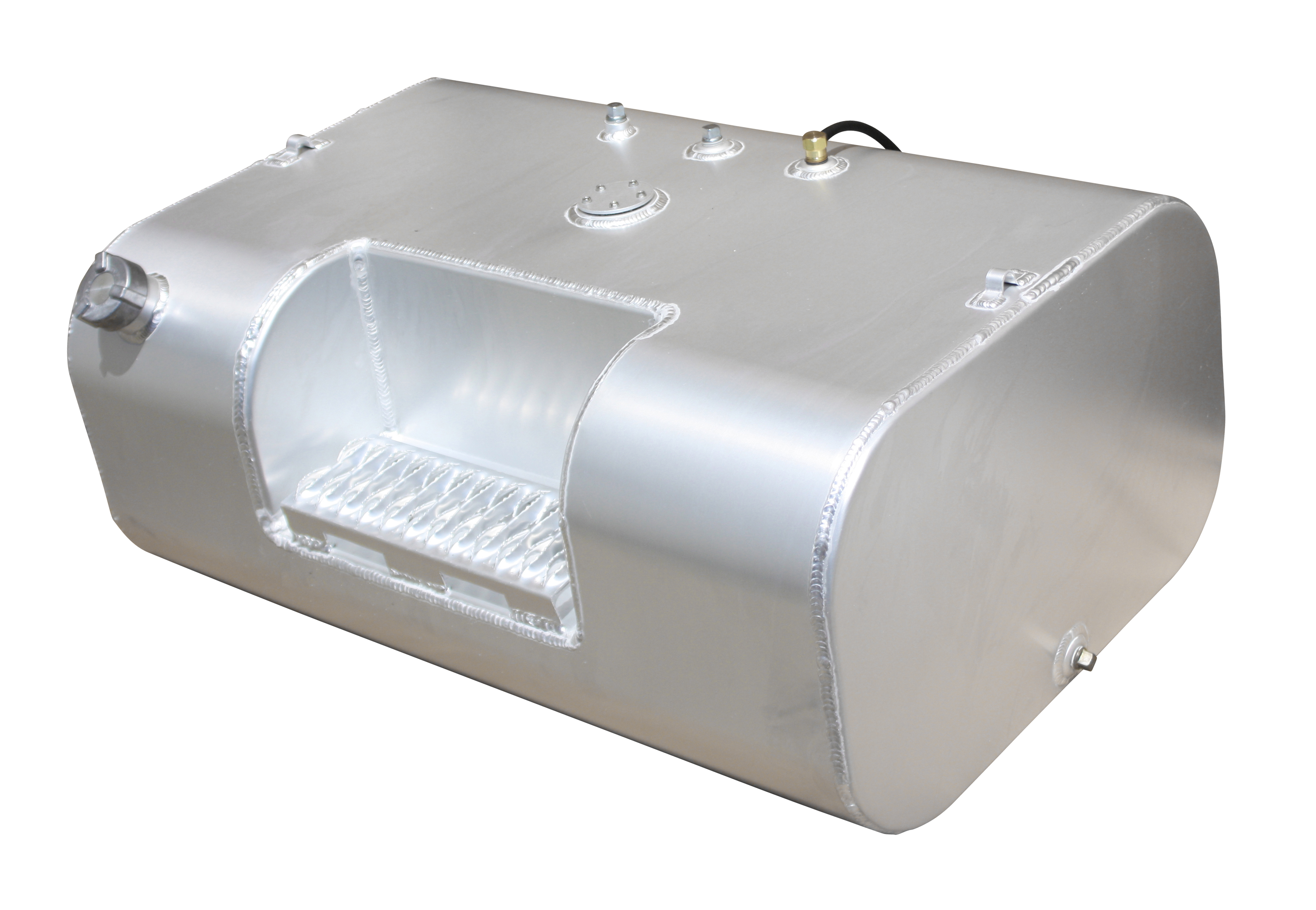

Gas Tank

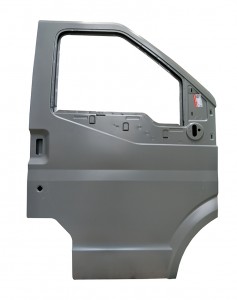

Car Door
Our Advantage
Inventory and Delivery
We have enough product in stock, we can offer enough material to customers. The lead time can be within 7 days for stock materil.
Quality
All the product are from the biggest manufacturer, we can offer the MTC to you. And we can also offer Third-Party test report.
Custom
We have cutting machine, custom size are available.
